Reliability meets performance: Lenovo ThinkCentre M70q Gen 6
The Lenovo ThinkCentre M70q Gen 6 is a mini pc for people who value performance and reliability over frills. Compact enough for any desk and built to last for years.
Powerful Intel Core Ultra 7 265T for smooth multitasking
At the heart of this mini pc sits a Intel Core Ultra 7 265T. It lets you switch effortlessly between dozens of browser tabs, Office applications and video calls in Teams or Zoom. This processor is known for its balance between speed and efficiency.
Work fluently with 16GB DDR5-SDRAM
With 16GB DDR5-SDRAM of memory the ThinkCentre M70q Gen 6 never keeps you waiting during your daily work. Open heavy spreadsheets, keep many tabs open and switch quickly between business applications. The system has 2x SO-DIMM memory slots and can be expanded to 64 GB.
Ultra-fast 512 GB SSD PCIe
Waiting is a thing of the past thanks to the 512 GB SSD PCIe. The system boots in seconds, applications open almost instantly and file transfers are far quicker than on a traditional hard drive.
Graphics
Graphics are handled by Not available.
Connectivity for the modern workplace
Wireless connectivity runs over Wi-Fi 6E (802.11ax) and Bluetooth 5.3. For a wired connection there is an ethernet port. Peripherals connect over HDMI for an external display.
Operating system and security
This device ships with Windows 11 Pro, so you can get started right away. The built-in TPM chip enables drive encryption with BitLocker.
Suitable for
The Lenovo ThinkCentre M70q Gen 6 is a good choice for:
- Office workplaces where desk space is scarce but speed matters.
- Reception and counter setups where the system can be tucked away.
- SMEs wanting a uniform, easy-to-manage fleet.
- Home offices with their own monitor and keyboard.
Delivery and support
Order before 16:00 on a working day and your order ships the same day. If you have a question after your purchase, our own technical department helps you out — we repair in house, down to component level.
Need advice or a different configuration?
Would you like this model with more memory, a larger SSD or a different keyboard layout? Get in touch and we will build it the way you need it. We are happy to advise on larger quantities for offices and schools as well.
Specification
Design
| Chassis type |
Mini PC |
| Ondersteuning voor plaatsing |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
Processor
| Processor |
Intel Core™ Ultra 7 265T, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel® Smart Cache |
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 7 |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor model |
265T |
| Processor cores |
20 |
| Processor threads |
20 |
| Processor boost frequency |
5.3 GHz |
| Performance cores |
8 |
| Efficient cores |
12 |
| Performance-core Max Turbo Frequency |
5.2 GHz |
| Efficient-core Max Turbo Frequency |
4.6 GHz |
| Processor cache |
30 MB |
| Processor cache type |
Smart Cache |
| Processor base power |
35 W |
| Maximum turbo power |
112 W |
| Prestatie-kernbasisfrequentie |
1.5 GHz |
| Efficiënte kernbasisfrequentie |
1.2 GHz |
| Aantal geïnstalleerde processoren |
1 |
Storage
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Total storage capacity |
512 GB |
| Storage media |
SSD |
| Total SSDs capacity |
512 GB |
| Number of SSDs installed |
1 |
| SSD capacity |
512 GB |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD form factor |
M.2 |
| Optical drive type |
No |
| Card reader integrated |
No |
| Max Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB each |
| Aantal storage drives geïnstalleerd |
1 |
| M.2 SSD-grootte |
2280 (22 x 80 mm) |
Memory
| Memory |
1x 16GB SODIMM DDR5-5600 |
| Internal memory |
16 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
5600 MHz |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
64 GB |
| Geheugen kanaal |
Dual-channel |
Graphics
| Grafisch |
Integrated Intel® Graphics |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card |
No |
| On-board graphics card family |
Intel® Graphics |
| On-board graphics card model |
Intel® Graphics |
Display
| Pen |
Pen Not Supported |
| Display included |
No |
Audio
| Audio chip |
Realtek ALC233VB |
| Speakers |
2Wx1 |
| Ingebouwde luidsprekers |
Yes |
| Audiosysteem |
High Definition Audio |
| Aantal luidsprekers |
1 |
Network
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Antenna type |
2x2 |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| WWAN |
WWAN Not Supported |
| Ethernet |
Integrated 100/1000M |
| WLAN + Bluetooth |
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro® |
| Wifi |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Cabling technology |
10/100/1000Base-T(X) |
| LAN controller |
Intel® I219-LM |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Intel® Thunderbolt 4 |
Yes |
| Combo headphone/mic port |
Yes |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A |
4 |
| Rear Ports |

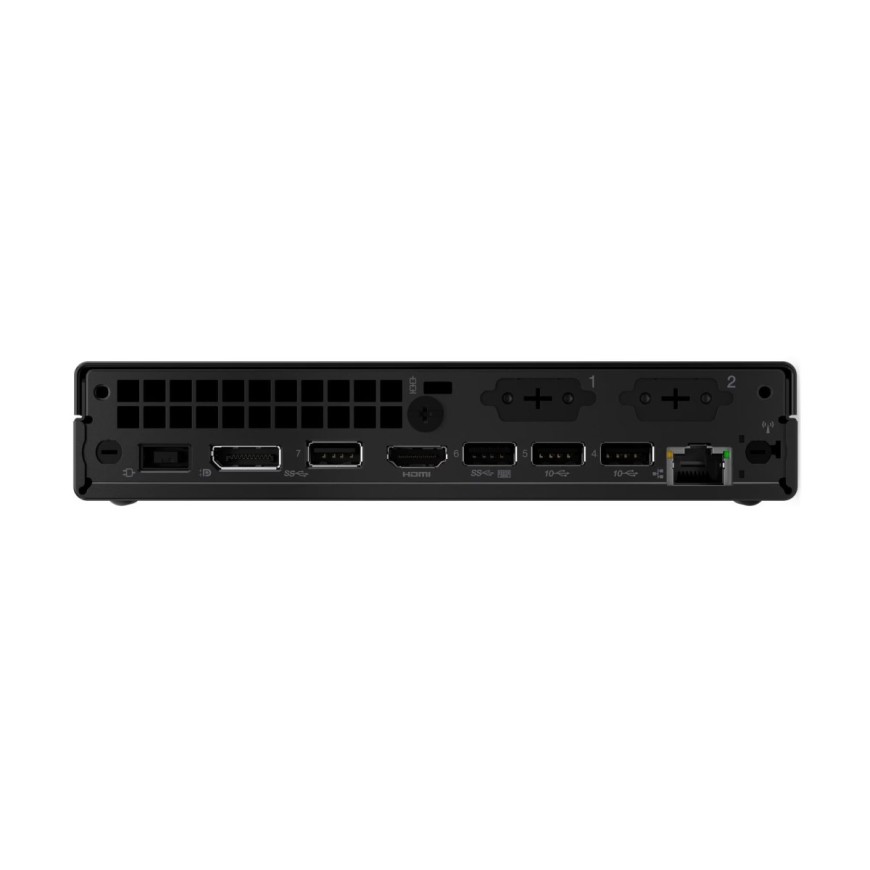

2x USB-A (USB 10Gbps / USB 3.2 Gen 2) (models with Intel® Q870 Chipset) 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On 1x HDMI® 2.1 TMDS 1x DisplayPort™ 1.4a (HBR2) 1x Ethernet (GbE RJ-45) |
| Aantal DisplayPorts |
1 |
| Front Ports |
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with [email protected] charging 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports Always On and [email protected] charging 1x headphone / microphone combo jack (3.5mm) |
| Optional Rear Ports (configured) |
Thunderbolt™ 4 |
| DisplayPort versie |
1.4a |
| DVI-poort |
Yes |
Performance
| Motherboard chipset |
Intel® Q870 |
Keyboard
| Keyboard |
USB Traditional Keyboard, Black, English (EU) |
Software
| Operating system architecture |
64-bit |
| Operating system language |
German, Dutch, English, French, Italian |
| Operating system installed |
Windows 11 Pro |
| Bundled Software |
None |
| Operating System |
Windows® 11 Pro, WE (EN/FR/DE/NL/IT) |
Neural processor unit (NPU)
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity-ondersteuning |
Yes |
| Ondersteuning voor Windows Studio-effecten |
Yes |
| AI-softwareframeworks ondersteund door NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU-prestaties tot |
13 TOPs |
Power
| Power Supply |
135W 90% Adapter |
| Netvoeding |
135 W |
| Voeding, voltage ingang |
100 - 240 V |
| Ingangsfrequentie voeding |
50/60 Hz |
Security
| Fingerprint reader |
No fingerprint reader |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Physical Locks |
Kensington Security Slot™, 3 x 7 mm |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Wachtwoordbeveiliging |
Yes |
| Password bescherming |
BIOS, HDD, Power on, Supervisor |
| Chassis Intrusion Switch |
Chassis Intrusion Switch |
| Kensington Cable Lock |
None |
Certificates
| Certification |
ENERGY STAR,TCO,RoHS |
| Green Certifications |
ENERGY STAR® 9.0 RoHS compliant TCO Certified, generation 10 |
| Mil-Spec Test |
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog) |
| Certificaten van naleving |
RoHS |
Duurzaamheid
| Duurzaamheidscertificaten |
ENERGY STAR, TCO |
Weight & dimensions
| Width |
179 mm |
| Depth |
182.9 mm |
| Height |
36.5 mm |
| Weight |
1.18 kg |
| Dimensions (WxDxH) |
179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches) |
| Breedte verpakking |
250 mm |
| Diepte verpakking |
490 mm |
| Hoogte verpakking |
128 mm |
| Gewicht verpakking |
3.2 kg |
Packaging content
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Muisconnectiviteit |
Wired |
| Toetsenbordconnectiviteit |
Wired |
Technische details
| Colour name |
Raven black |
| Product type |
Mini PC |
| Form factor |
Tiny (1L) |
| Announce Date |
2025-05-13 |
| Country/Region |
Netherlands |
| EAN / UPC / JAN |
0198158185073 |
| End of Support |
2031-12-13 |
| Machine Type |
13A4 |
| Model |
13A4000RMH |
| Region |
WE |
| TopSeller |
Yes |
| Base Warranty |
1-year, Onsite |
| Included Upgrade |
3Y Onsite upgrade from 1Y Onsite, 1Y Premier Support TC DT/AIO Mainstream/Halo WHB (CPN) |
| Volume |
1 L |
Operational conditions
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Hoogte, in bedrijf |
0 - 3048 m |
| Hoogte bij opslag |
0 - 12192 m |
Moederbord
| AI PC Category |
AI PC |
| Chipset |
Intel® Q870 Chipset |
| System Management |
Intel® vPro® Enterprise |
| Card Reader |
No card reader |
